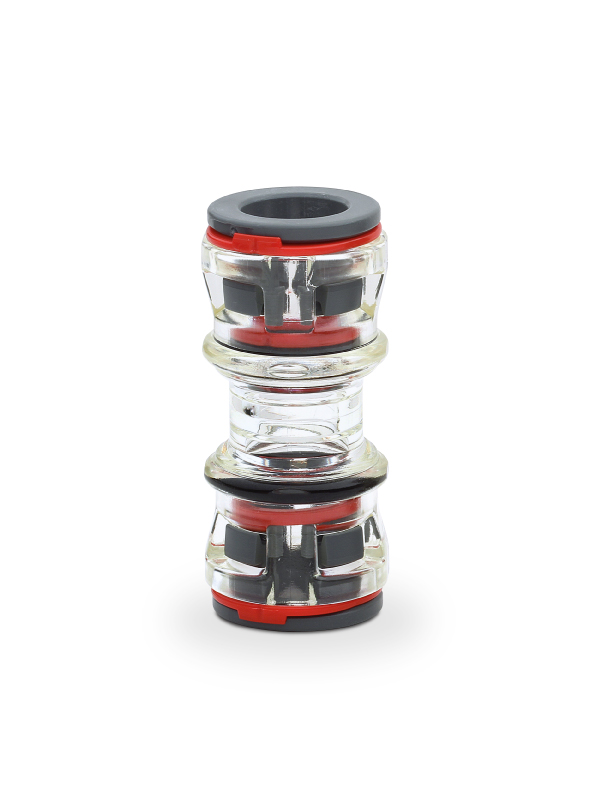

CV4580 7/5,5 - DI straigh connector with clips for microduct 7/5,5mm

Technical Data:

• Model: CV4580 7/5.5
• Microduct Diameter: 7/5.5mm
• Weight: 6.5g
• Package Quantity: 100 pieces
• Protection Class: IP68
• Material: Body made from polyamide, seal from NBR, washer and collet from polyacetal
• Working Pressure: Up to 20 bar
• Working Temperature: -20°C to +50°C
• Standard Compliance: CEI EN 50411-2-8

Features:

• Easy push-in connection for quick assembly
• Transparent body for visual inspection
• Metal-free, ensuring non-conductive properties
• Suitable for direct installation and compatible with direct buried applications
• Long-lasting with a projected lifespan of 25 years

Application:
The CV4580 7/5.5 DI Straight Connector is used for efficiently connecting microducts in telecommunications infrastructure, supporting high data volume and low latency requirements. It is suitable for both indoor and outdoor installations, including direct buried applications.
