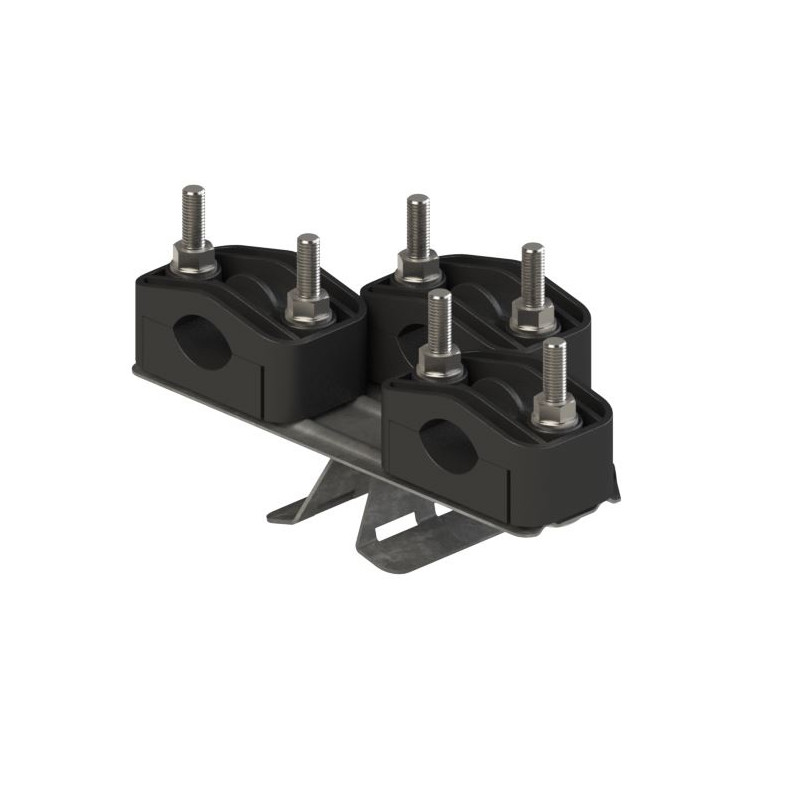

U-2 triple clamp for spun concrete poles for 45-75 mm pipes

Technical Data:

• Product Code: AC-UCH-W3-4575
• Weight (shipment): 0.88 kg
• Dimensions: 224 x 120 x 96 mm
• Pipe Capacity: 3 pipes
• Suitable Pipe Diameter: 45-75 mm
• Material: Polyamide and hot-dip galvanized S235 steel
• Assembly Method: Steel strip

Features:

• Robust triple bracket design for stable mounting
• Compatible with a variety of pipe sizes (45-75 mm in diameter)
• UV radiation resistance and weatherproof for longevity
• Accommodates three HDPE pipes simultaneously

Application:
Ideal for the assembly of overhead networks in construction projects, the U-2 triple clamp is specifically designed to attach to round poles using a stainless steel tape, ensuring a secure installation of conduit pipes exposed to outdoor elements.
