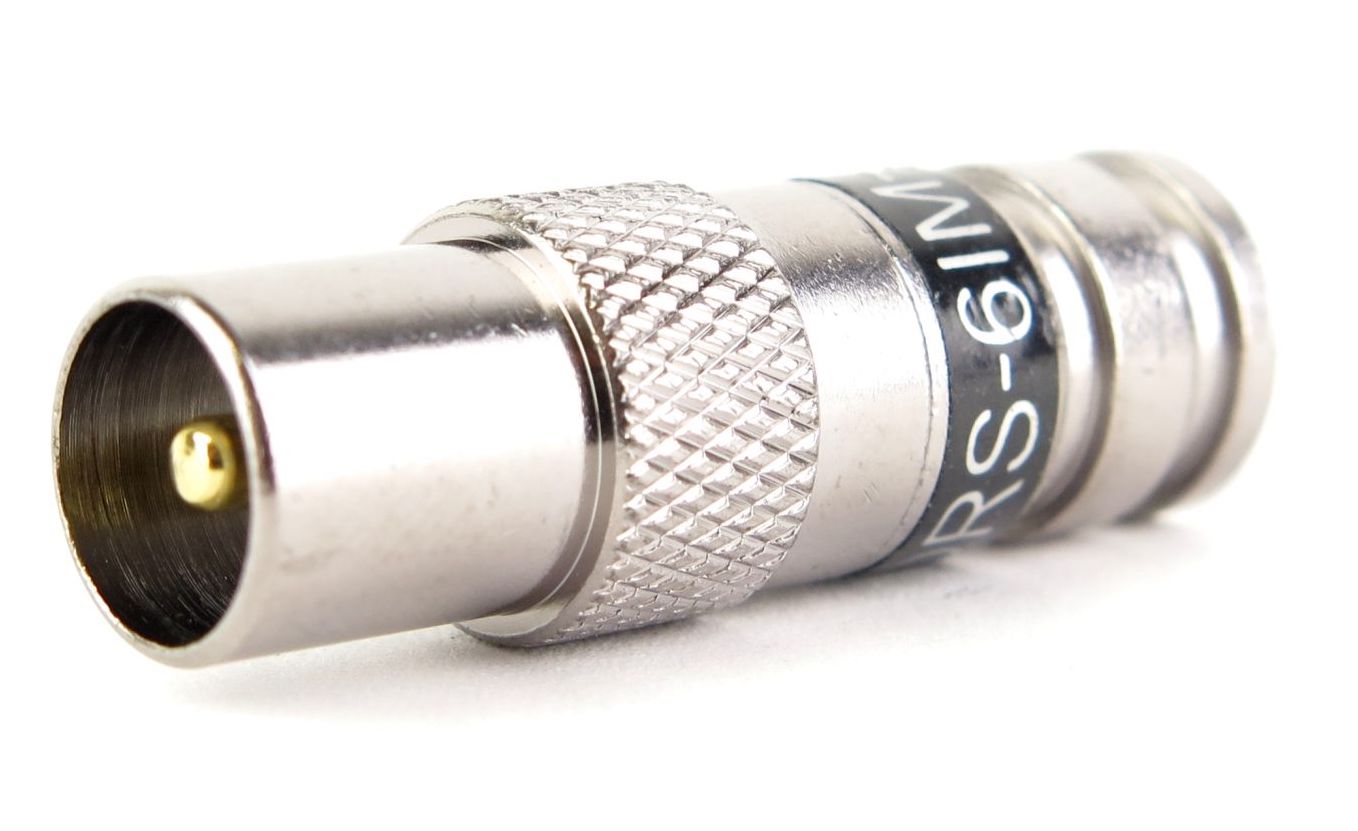

PCT-DRS-6IM-NT - Connector IECM for Cable RG6

Technical Data:

• Bandwidth: 5 MHz to 3 GHz
• Impedance: 75 Ohms (Nominal)
• Insertion Loss: ≤ 0.3dB at 3GHz
• Operating Temperature: -40° F to +140° F (-40° C to +60° C)
• Cable Range: Series 6 Cable 60% through Tri-Shield
• Core Diameter (Dielectric + Tape): 0.188 in (4.80 mm) ± 0.005 in
• Jacket Diameter: 0.267 in (6.80 mm) to 0.285 in (7.25 mm) ± 0.008 in
• Cable Retention: >50 lb. (22.68 kg)
• Cable Insertion: <15 lb. maximum insertion force

Features:

• High bandwidth capacity ensuring minimal signal loss for high-quality transmission
• Excellent cable retention strength for secure and reliable connections
• Nickel tin plated brass construction for durability and resistance to corrosion
• Compatible with PCT-AIO-CT compression tool for easy and efficient installation

Applications:
This compression connector is suitable for various applications including residential and commercial installations of satellite and cable TV, CCTV, and broadband internet where reliable and high-performing connections are essential.
