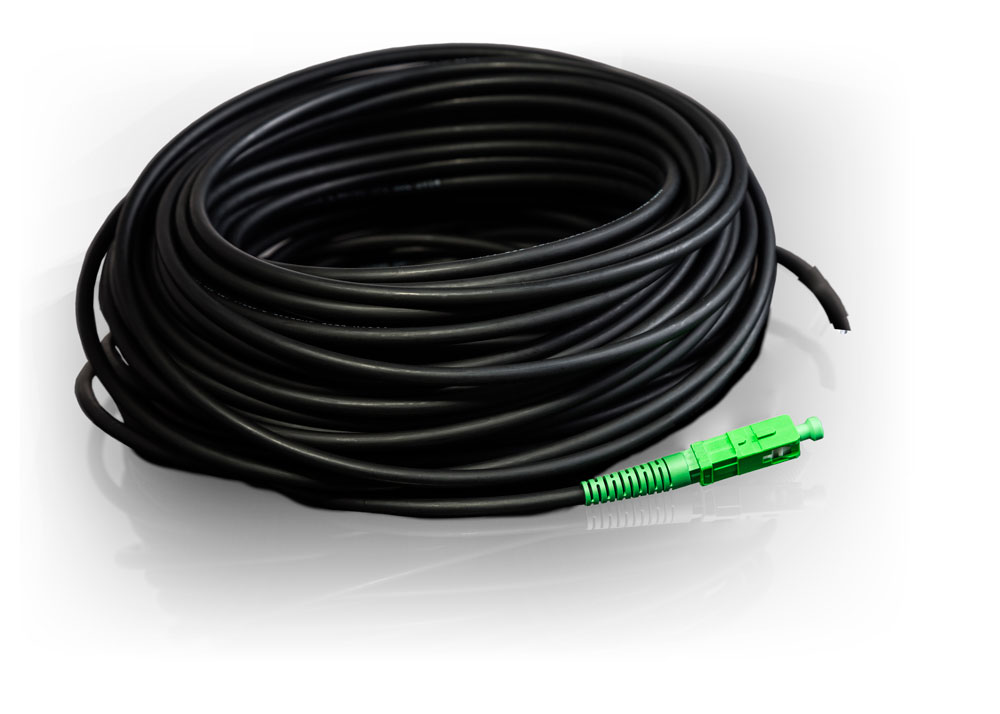

SLIM Pigtail 1J G.657.A1 1x SC APC 50m

Manufacturer: Cellco
Enhance your network connectivity with our SLIM Pigtail cable, featuring a high-quality SC APC connector and designed for optimal performance and durability with a 50m length.
SKU: N-M-SLIM-PGT-02/01-SCA-50
Availability: In stock
Warehouse: EU warehouse

Technical Data:

  • Product Code: N-M-SLIM-PGT-02/01-SCA-50
  • Fiber Type: G.657.A1
  • Color: Black
  • Outer Sheath: LSZH (Low Smoke Zero Halogen)
  • Diameter: 3mm
  • Number of Fibers: 2
  • Length: 50 meters
  • UV Resistance: Yes

Features:

  • Equipped with an SC APC connector with an 8-degree angled polish for reduced back reflection and enhanced connection quality.
  • Made from G.657.A1 class fiber for high flexibility and minimal signal loss.
  • The cable includes an LSZH sheath for improved safety and universal application.
  • Designed to be rugged and lightweight for easy installation.
  • The construction is completely dielectric, ensuring safety near electrical hazards.
  • Comes with a heat-shrinkable cap for added protection during installation.
  • The cable is fully dry to prevent moisture-related issues.

Application:

  • Suitable for external use, particularly in self-supporting overhead networks.
  • Can be deployed for subscriber connections, accommodating spans of up to 75-85m.
  • Its slim design is compatible with subscriber holders, making for a seamless installation process.
Products specifications
Number of fibers 2
Outer shell LSZH
UV resistance yes
Diameter [mm] 3
Connector type SC/APC
Length [m] 50
*
*
*
