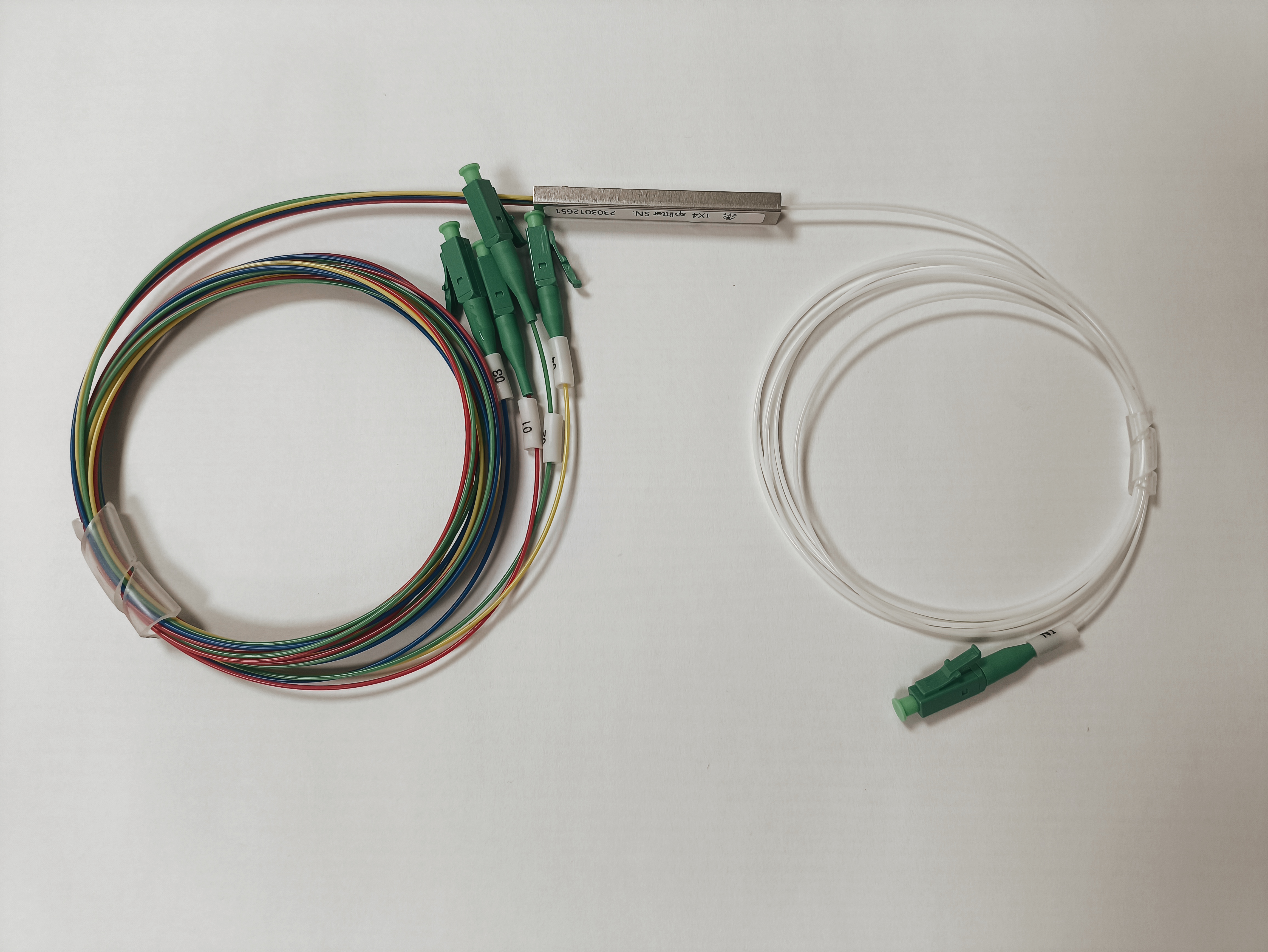

Technical Data:
Configuration: 1x4
Connector Type: LC/APC
Pigtail Length: 1.5m
Outer Diameter: 0.9±0.08mm
Fiber Type: G657A1
Operating Wavelength: 1260-1650nm
Insertion Loss: ?7.3dB (measurement does not include connector loss)
Note: Connector loss should be added to the above insertion loss, typically +0.2dB.
Features:
Small size with an aesthetic appearance conducive to system integration.
Color-coded hytrel for easy identification.
Complies with Telecordia GR-1209 and GR-1221 standards for reliability.
Offers stable performance with a wide operating wavelength range, making it suitable for PON applications.
Application:
This PLC splitter is typically installed in optical cross-connecting cabinets and splitting boxes. It can be customized in color to meet customer requirements and is ideal for network distribution or signal routing where space is at a premium.
