Pigtail SLIM 1J G.657.A1 1x SC APC 90m

Manufacturer: Cellco

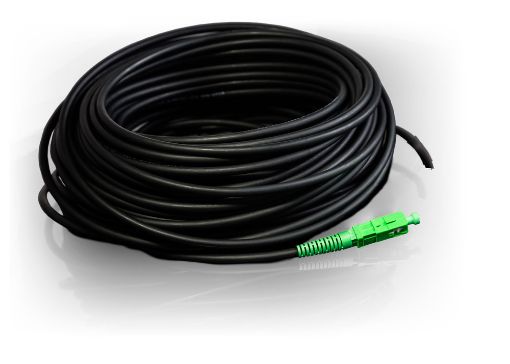

The Pigtail SLIM 1J G.657.A1 is a 90-meter fiber optic pigtail with a durable, low-smoke zero-halogen (LSZH) sheath and an SC APC connector, designed for external use in overhead networks and subscriber connections.
SKU: N-M-SLIM-PGT-02/01-SCA-90
Availability: In stock
Warehouse: EU warehouse

Technical Data:

  • Product Code: N-M-SLIM-PGT-02/01-SCA-90
  • Fiber Type: G.657.A1
  • Color: Black
  • Outer Shell: LSZH
  • Diameter: 3 mm
  • Number of Fibers: 2
  • Connector Type: SC/APC
  • Length: 90 meters
  • Max. Span Distance: 75-85m

Features:

  • SC APC connector with 8-degree angled polish for reduced back reflection and higher signal quality
  • Cable diameter optimized for compatibility with subscriber holders
  • Robust yet lightweight for easy handling
  • Safe for installation on buildings
  • Fully dielectric construction for electrical hazard safety
  • Equipped with a heat-shrinkable cap for connector protection
  • Completely dry to prevent moisture-related issues
  • Drawability for easier installation

Applications:

  • Designed primarily for external environments
  • Suitable for self-supporting overhead network installations
  • Ideal for establishing subscriber connections in telecommunications systems
Products specifications
Number of fibers 2
Outer shell LSZH
UV resistance yes
Diameter [mm] 3
Connector type SC/APC
Length [m] 90
*
*
*
