Technical Data:
Conductor: Stranded AWG 26/7
Insulations: HD-PE (High Density Polyethylene)
Outer sheath: PVC
Overall diameter: 4.6 mm ± 0.30 mm
Bending radius: 8x OD
RJ45 connector: 3 µ nominal gold flash over 60 µ nickel undercoat contact pins
Color code: Orange x White, Green x White, Blue x White, Brown x White
Wiring standard: EIA/TIA 568B
Pin assignment: 1:1
Durability: 750 insertion cycles
Operating temperature: -20 °C up to +60 °C
Norms: ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-2
Features:

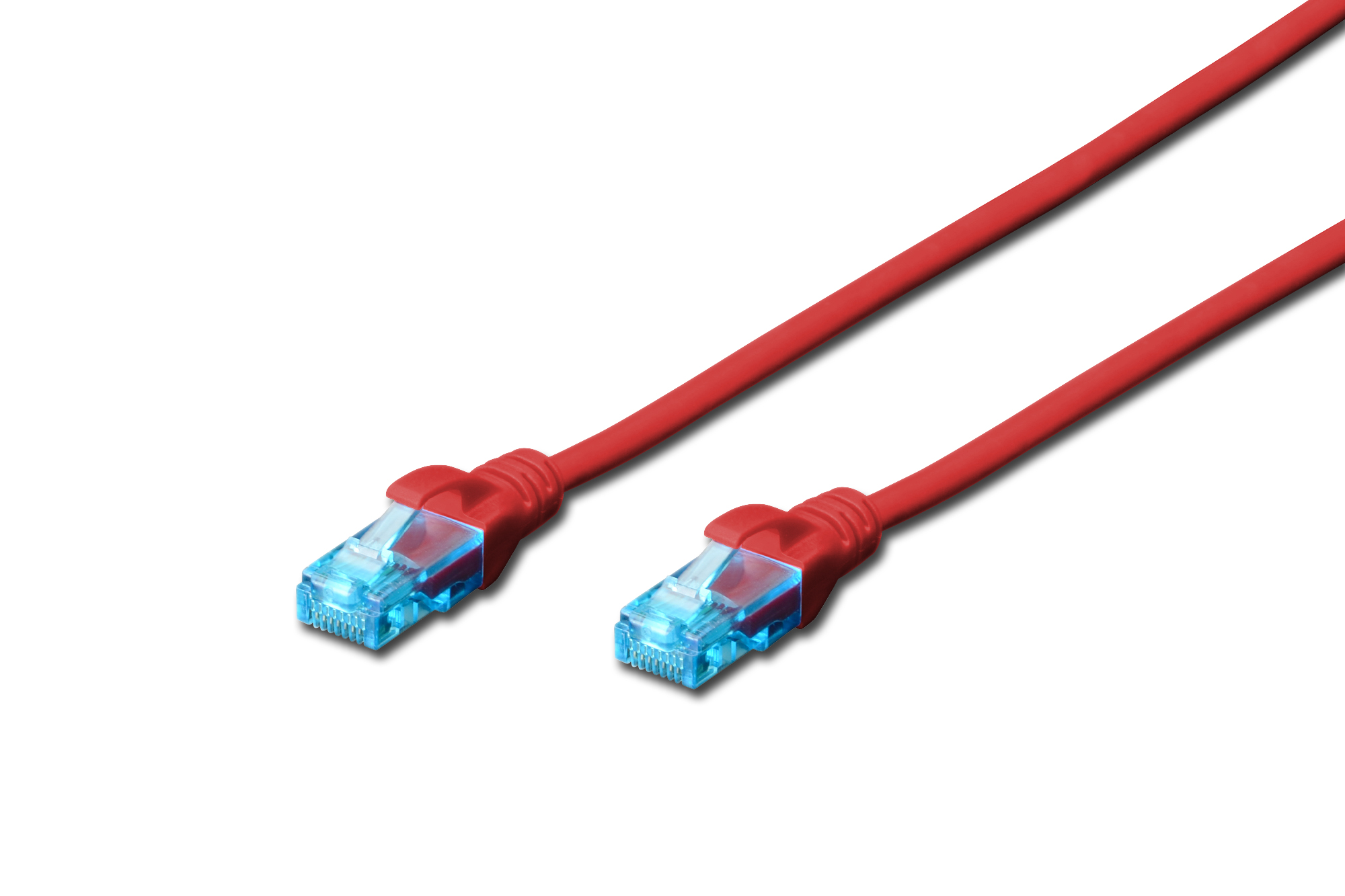

2x RJ45 (8P8C) connectors
Boots with kink protection, strain relief and latch protection
Length marking on boot
Shielding: U/UTP (unshielded)
Structure: 4x 2 AWG 26/7, twisted pair
Application:
Suitable for IEEE 802.3 standards: 10BASE-T, 100BASE-T, 1000BASE-T
Ideal for use in networking and data transmission applications
