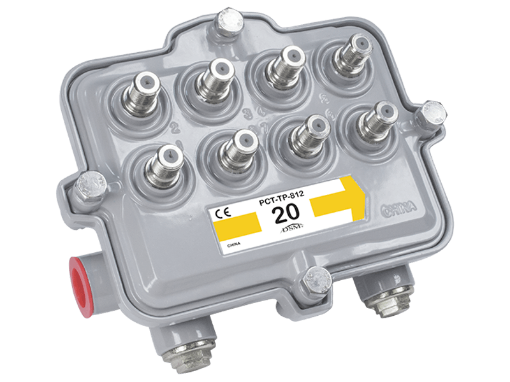

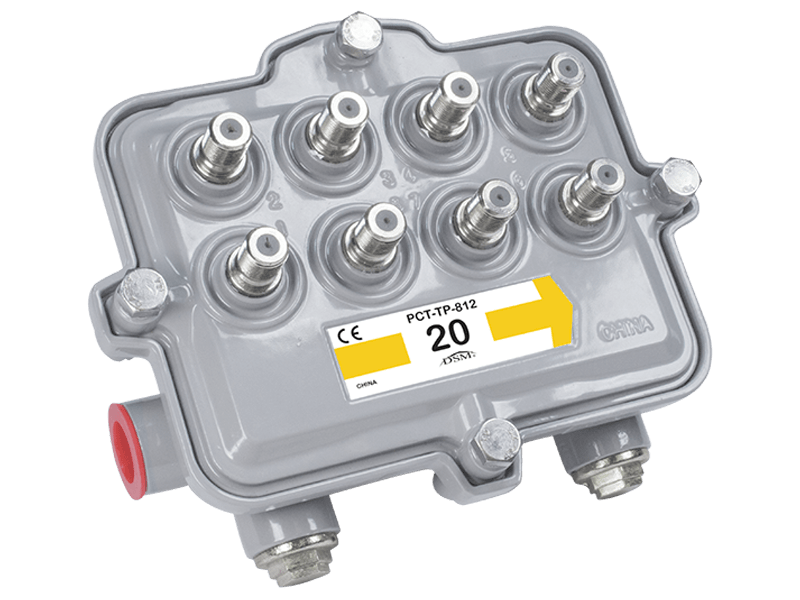

Outdoor Tap, 8-way, 11dB PCT- TP812-11

Technical Data

• Bandwidth: 1.2 GHz
• Tap Loss (Max): 12.0 dB (5 to 10 MHz), 12.3 dB (65 to 860 MHz), 13.0 dB (860 to 1200 MHz)
• Insertion Loss (Max): 3.6 dB (5 to 10 MHz), 4.0 dB (65 to 300 MHz), 5.1 dB (862 to 1000 MHz)
• Isolation: 23 dB (5 to 10 MHz), 30 dB (65 to 860 MHz), 26 dB (860 to 1200 MHz)
• Return Loss: 18 dB (10 to 47 MHz), 17 dB (47 to 950 MHz), 14 dB (950 to 1200 MHz)
• Power Passing: 15A
• Nominal Impedance: 75 Ohms
• Waterproof Condition: 15 psi
• Surge Withstand: IEEE C62.41 Cat. B3 Waveform (In-Out), IEEE C62.41 Cat. A3 Waveform (Tap Ports)
• Temperature Range: -40° C to +60° C
• RFI Shielding: 100 dB

Features

• DSM Seizure Technology: Patented for increased spring retention and better electrical performance.
• Weather Resistant: Aluminum alloy housing with powder coating and weather seal gasket for water-tight protection.
• Corrosion Resistance: Stainless steel hardware and nickel-plated, brass 'F' ports.
• Easy Installation: Heat shrink ridges on tap ports.
• Compliance: Conforms to all applicable SCTE standards.
• Color-Coded Tap Values: For easy identification.

Application

The PCT-TP812-11 is ideal for use in outdoor traditional series, high-frequency signal distribution systems in residential and commercial DOCSIS 3.1 network environments. Its robust design ensures reliable performance even in harsh weather conditions, making it suitable for new plant designs requiring higher current ratings and uninterrupted power passing.
