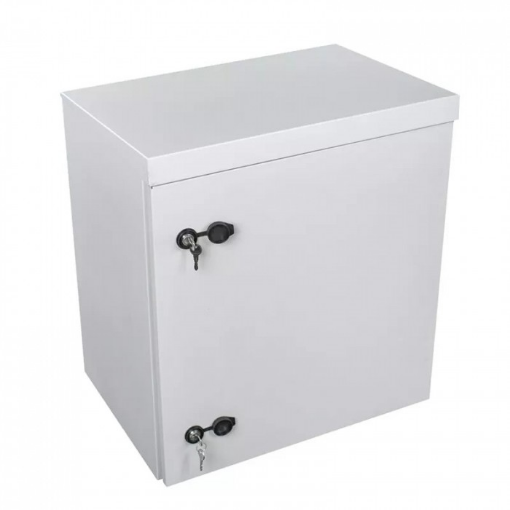

Technical Data:
Dimensions: 430mm (D) x 590mm (W) x 520mm (H)
Material: Magnelis, 1.0 mm thickness
Color: RAL 7035
Weight: 15 kg
Tightness Class: IP 65
Mechanical Protection Class: IK 10
Cabinet Capacity: 19" 9U
Features:
Equipped with 19” 9U rack mounts for versatile equipment accommodation.
Features reinforced backing at mounting hole locations for enhanced stability.
Includes Pg13.5 glands to ensure secure cable entries.
Mounting holes paired with tight membrane bushings for added protection.
Grounding connectors provided for electrical safety.
Dual locks with a repeatable key code for secure access.
Supports the use of mounting plates on a 515x340mm back panel for additional equipment arrangement.
Applications:
This cabinet is specifically adapted for safe and efficient installation of telecommunications equipment. It is ideally suited for environments requiring high standards of tightness and mechanical protection, ensuring your infrastructure is safeguarded against external factors. Whether it’s for data centers, industrial settings, or network facilities, this cabinet provides the reliability and flexibility needed for modern telecommunications applications.
