Technical Data:

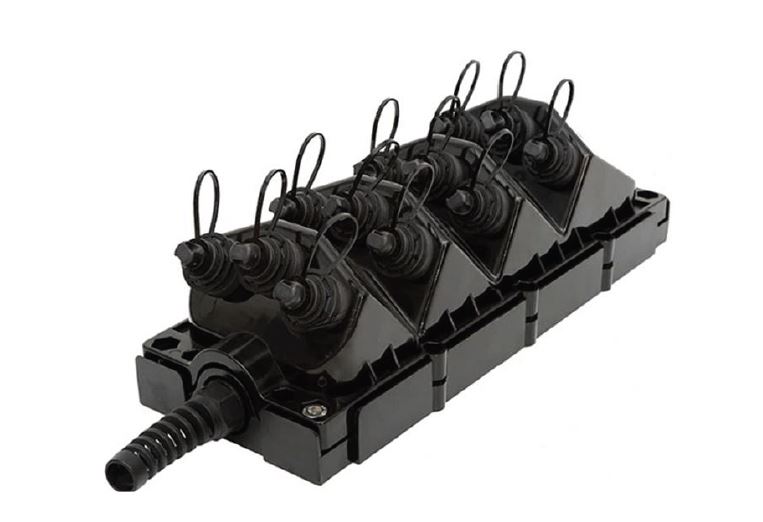

Model: FCST02284-12cores
Dimensions: 416 x 120 x 85 mm
Material: Polycarbonate (PC)
Ingress Protection: IP68
Temperature Range: -40°C to 80°C
Cable Type: Supports both armored and non-armored cables, with round cable OD of 6.0 mm to 12.0 mm
Cable Jacket Material: LSZH, PE, TPU
Bending Radius: 20D
Tensile Strength: 1200N (long term)
UV Resistance: ISO 4892-3
Fire Protection: UL94-V0
Features:
Pre-connectorized design eliminates the need for splicing, enhancing installation efficiency.
IP68-rated for superior waterproof protection.
Compatible with OptiTap connectors.
Supports various installation methods: wall-mounting, aerial, or pole installations.
Cost-effective, reducing total operational costs by 15-30%.
Robust construction withstands harsh environments and high tension forces.
Application:
Ideal for use in FTTx networks, the FCST02284 is suitable for FTTH (Fiber to the Home) and FTTA (Fiber to the Antenna) deployments, as well as other challenging outdoor environments where reliable fiber distribution is crucial.
