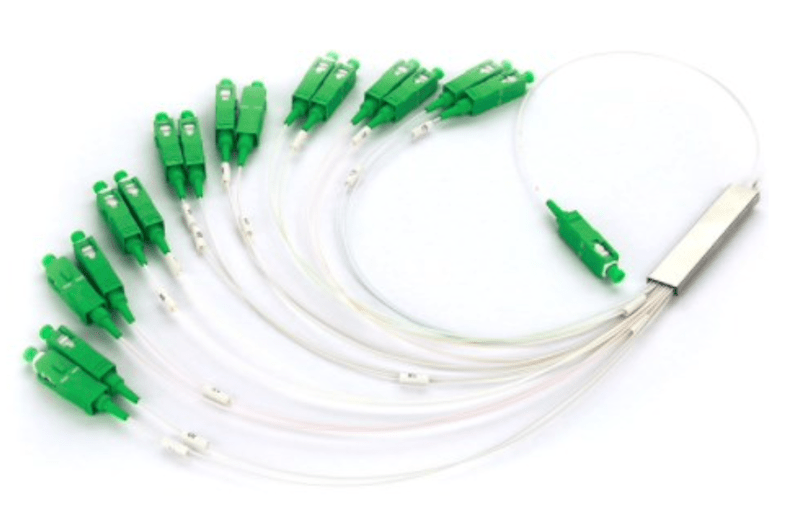

Optical splitter 1:8 plc - with connectors

Manufacturer: ZTT
The Optical Splitter 1:8 PLC with connectors is a high-quality telecommunications product designed for efficient signal distribution in fiber optic networks. It is compact in size and features a sleek design. The splitter is easy to install and offers reliable performance and stability. With excellent uniformity, it is particularly suitable for use in Passive Optical Networks (PON). The product complies with RoHS2.0 standards, ensuring its environmental friendliness.
SKU: 227
Availability: Currently out of Stock

Technical Data:

  • Type: Mini PLC Splitter
  • Channel Wavelength Range: 1260-1650 nm
  • Insertion Loss: ≤3.8 dB (1x2), ≤7.0 dB (1x4), ≤10.2 dB (1x8), ≤13.5 dB (1x16), ≤16.8 dB (1x32), ≤20.3 dB (1x64)
  • Loss Uniformity: ≤0.6 dB (1x2, 1x4), ≤0.8 dB (1x8), ≤1.2 dB (1x16), ≤1.5 dB (1x32), ≤1.8 dB (1x64)
  • Return Loss: ≥55 dB
  • Polarization Dependent Loss: ≤0.12 dB (1x2), ≤0.15 dB (1x4), ≤0.2 dB (1x8, 1x16), ≤0.3 dB (1x32, 1x64)
  • Directivity: ≥55 dB
  • Operating Temperature: -40°C to +85°C
  • Storage Temperature: -40°C to +85°C

Features:

  • Compact size and aesthetic appearance
  • Quick and easy installation
  • Reliable performance and stability
  • Excellent uniformity, ideal for PON applications
  • RoHS2.0 compliant for environmental friendliness

Applications:

The Optical Splitter 1:8 PLC with connectors is typically installed in fiber distribution boxes, splitting type joint boxes, or other splitting boxes where space is limited. It is widely used in telecommunications networks, including fiber-to-the-home (FTTH) deployments, to distribute optical signals to multiple end-users. The splitter's high performance and compact design make it suitable for various applications in the telecommunications industry.

*
*
*
