Technical Data:
Input Frequency Range: 10.7 GHz ~ 12.75 GHz
Output Frequency Range: 950 MHz ~ 2150 MHz
Low Band LO Frequency: 9.75 GHz
High Band LO Frequency: 10.6 GHz
Noise Figure: 0.3 dB typ. (0.7 dB max.)
LO Frequency Accuracy @ 25° C: ±500 kHz max.
LO Temperature Drift: ±1.0 MHz max.
LO Phase Noise @ 10 kHz: -80 dBc/Hz max.
Conversion Gain: 55 dB min.
Gain Ripple (over 26 MHz bandwidth): ±0.75 dB
Gain Variation (over full band): ±4 dB
Image Rejection: 40 dB min.
3rd Order Intermodulation - ICP3: 10 dBm min.
1 dB Compression Point (@ output): 0 dBm min.
Cross Polarization Isolation: 22 dB typ., 20 dB min.
Control Signal Ca (V): 11.0 V ~ 14.0 V
Control Signal Cb (H): 16.0 V ~ 20.0 V
Control Signal Cc (band switching): 22 kHz ±4 kHz, 0.4 V ~ 0.8 V pp
Output VSWR: 2.5 : 1
In Band Spurious Level: -60 dBm max.
Current Consumption: 120 mA max. @ 11 VDC ~ 20 VDC
Operating Temperature: -30 °C ~ +60 °C
Output Impedance: 75 ?
Output Connector Type: F-type (female)
Dish F/D Ratio: 0.6
Weight: 221 g
Features:
Low Phase Noise: Compliant with DVB-S2 standards for both HD and UHD transmissions.
Low Noise Figure: Ensures clear signal reception.
Low Power Consumption: Energy-efficient design.
High Cross Polarization Isolation: Reduces signal interference.
High Frequency Stability: Reliable performance in various conditions.
Application:

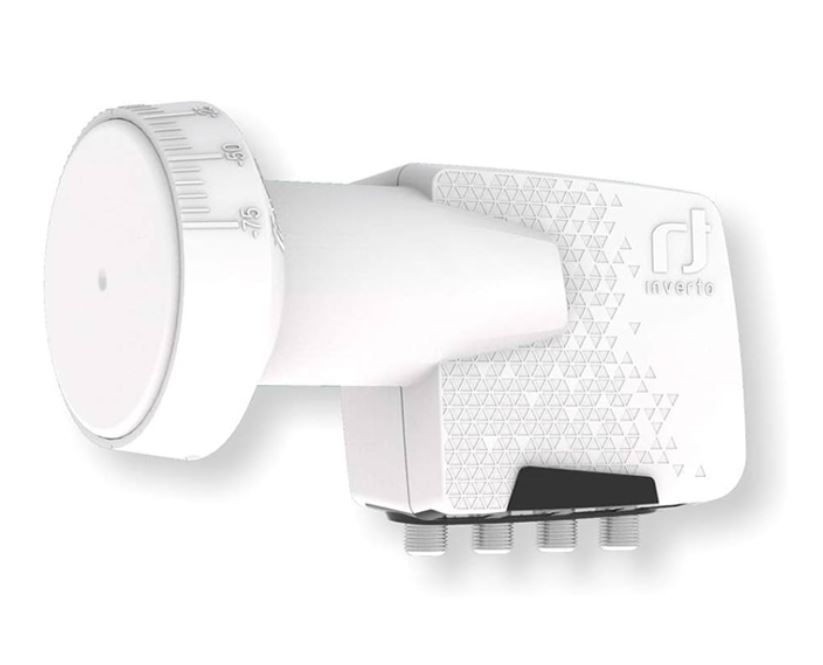

The HOME Pro Quad Universal 40mm PLL LNB is ideal for Direct-To-Home (DTH) satellite reception and distribution. It is perfect for consumers looking for high-quality satellite TV reception, supporting up to four single tuner Set Top Boxes or two twin tuner PVRs. The LNB is engineered to mitigate 4G/LTE interferences, making it a robust solution for satellite broadcast reception worldwide.
