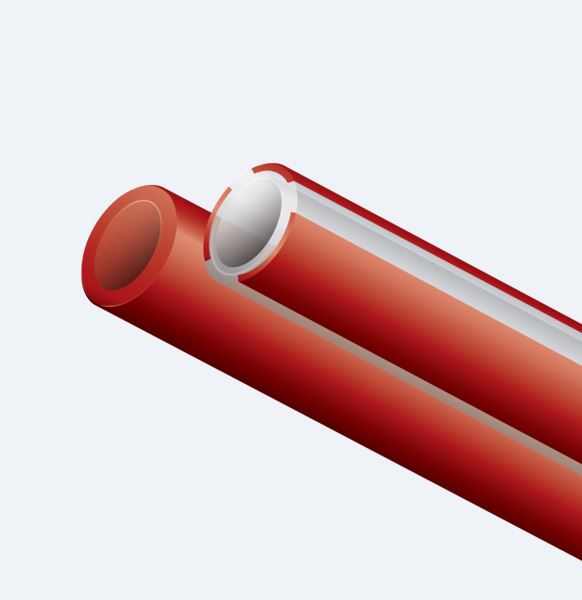

Technical Data:
Material: High-Density Polyethylene (HDPE)
Size: 12 mm Outer Diameter (OD), 9.6 mm Inner Diameter
Pressure Resistance: Minimum 15 bar
Inner Lining: Silicore® with low friction coefficient (<0.1)
Features:
This product features a permanently lubricated inner layer, Silicore, with a low inner coefficient of friction for maximum cable blowing length. It also has an anti-static inner layer to counteract friction from static electricity build-up during installation. It is available in 13 opaque RAL colours, and also in colourless with stripes of 13 opaque colours.
Applications:
The MicroDucts HDPE 12/9.6 mm is perfect for creating new direct buried pathways or as a subduct in existing lines. It can be installed by pulling, blowing, or pushing in existing duct systems, accommodating single MicroDucts or bundles. It is also suitable for use in other DB bundles such as FuturePath HDPE and FuturePath Flex.
