Technical Data:
Material: High-Density Polyethylene (HDPE)
Size: 16 mm Outer Diameter (OD), 12 mm Inner Diameter (ID)
Pressure Resistance: Minimum 15 bar
Inner Lining: Silicore, with a low coefficient of friction (<0.1)
Features:

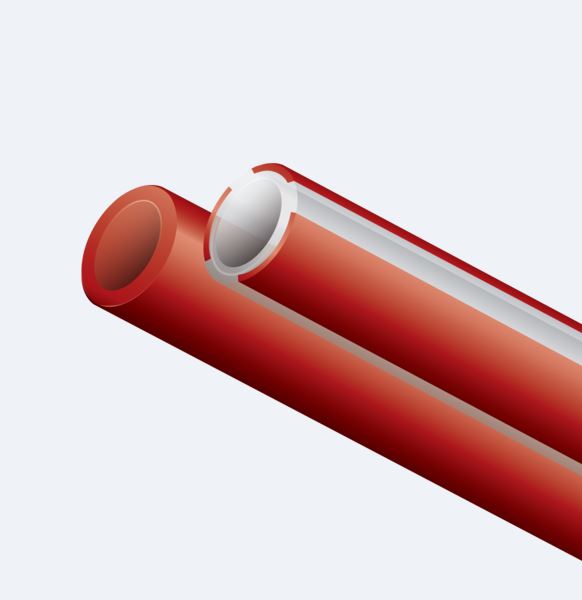

The MicroDucts HDPE 16/12mm features a Silicore, permanently lubricated inner lining for lower inner coefficient of friction and an anti-static inner layer to reduce friction caused by static electricity build-up during fibre installation. It offers superior impact and compression resistance and is available in 13 opaque RAL colours or in a transparent version with stripes of 13 opaque colours.
Applications:
This product is perfect for establishing new direct buried pathways or serving as a subduct in existing lines. It can be installed by pulling, blowing, or pushing in existing duct systems, accommodating single MicroDucts or bundles. It is also compatible with other DB bundles like FuturePath HDPE and FuturePath Flex.
