Technical Data:
Size (OD/ID): 20/15 mm
Wall Thickness: 2.5 mm
Bend Radius: 200 mm
Storage Temperature: -40 to 70°C
Installation Temperature: -10 to 50°C
Use Temperature: -40 to 70°C
Burst Pressure: 25 bar
Maximum Pulling Force (Test Method: ISO 527-1, 2): 975 N
Crush IEC (Test Method: IEC 60794-1-21 method E3A): 3 N
Bending Stiffness (Test Method: CWS 103-2015): 6174 N.m2
Thermal Expansion: 1.6 x 10exp(-4) K exp(-1) K-1
Duct Ovality on Drum (After 1 Hour): 5 %
Features:
Flame retardant and low smoke halogen-free materials
Pressure resistance minimum of 15 bar
Permanent Silicore lubrication for efficient cable blowing length
Anti-static inner layer
Long-life expectancy
Available in milky white colour
Options for smooth or ribbed inner lining
Size Range: 4 mm - 20 mm Outer Diameter
Ribbed inner design option from 7 mm up
Footage/Meter Markings
Options for pre-installed cable or rope
Applications:

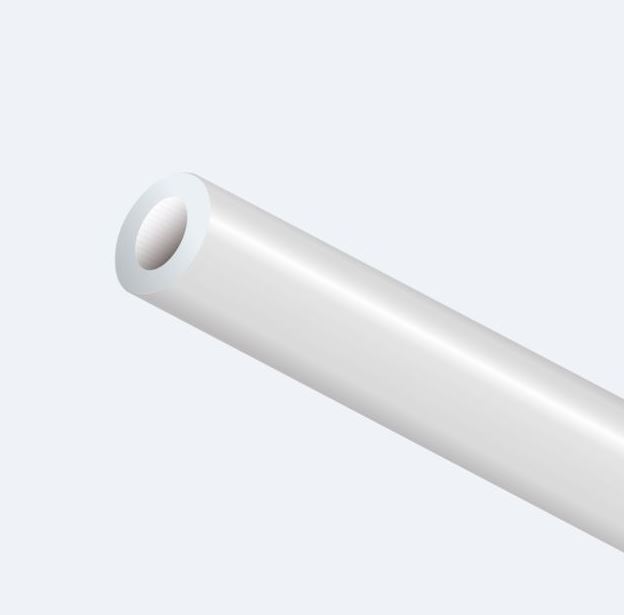

The DuraMicro LSHF 20/15 mm MicroDucts are ideal for indoor network applications where smoke, toxic fumes, and acidic gases are a concern. They can be used for creating new network routes or as a subduct in existing lines. With various color and stripe options available and meeting the strictest V0 classification according to UL 94:2013, they offer a secure and efficient solution for networking needs.
