Technical Data:
Size (OD/ID): 14/10 mm
Wall Thickness: 2 mm
Bend Radius: 140 mm
Storage Temperature: -40 to 70°C
Installation Temperature: -10 to 50°C
Use Temperature: -40 to 70°C
Burst Pressure: 40 bar
Maximum Pulling Force (Test Method: ISO 527-1, 2): 740 N
Crush IEC (Test Method: IEC 60794-1-21 method E3A): 2.1 N
Bending Stiffness (Test Method: CWS 103-2015): 1604 N.m2
Thermal Expansion: 1.6 x 10exp(-4) K exp(-1) K-1
Duct Ovality on Drum (After 1 Hour): 5 %
Features:
Flame retardant and low smoke halogen-free materials
Pressure resistance minimum of 15 bar
Permanent Silicore lubrication for maximum cable blowing length
Anti-static inner layer
Long-life design
Available in milky white colour
Choice of smooth or ribbed inner lining
Size Range: 4 mm - 20 mm Outer Diameter
Ribbed inner design option from 7 mm up
Footage/Meter Markings
Options for pre-installed cable or rope
Applications:

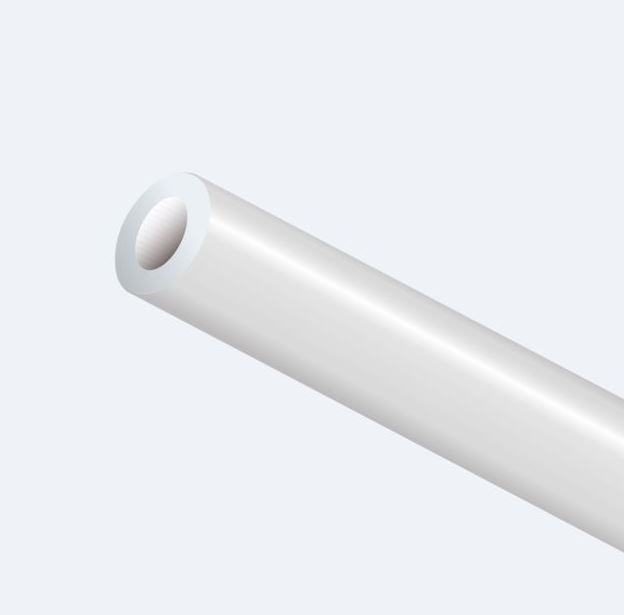

The MicroDucts LSHF 14/10 mm is perfect for indoor network applications where there is a potential risk of smoke, toxic fumes, and acidic gas emissions. It can be used to create new routes or serve as a subduct in existing lines, making cable placement a breeze with its smooth or ribbed inner lining options. It offers various color and stripe options, meeting the strictest V0 classification according to UL 94:2013.
